Dream Color Rgb-ic Led Strip Motion Sensor Stair Light Addressable Pixel Controller Chase Running Light Led Tape Step Lighting

This controller only support: WS2811, WS2818, SM16703, TM190 IC led strips!

NOTE:

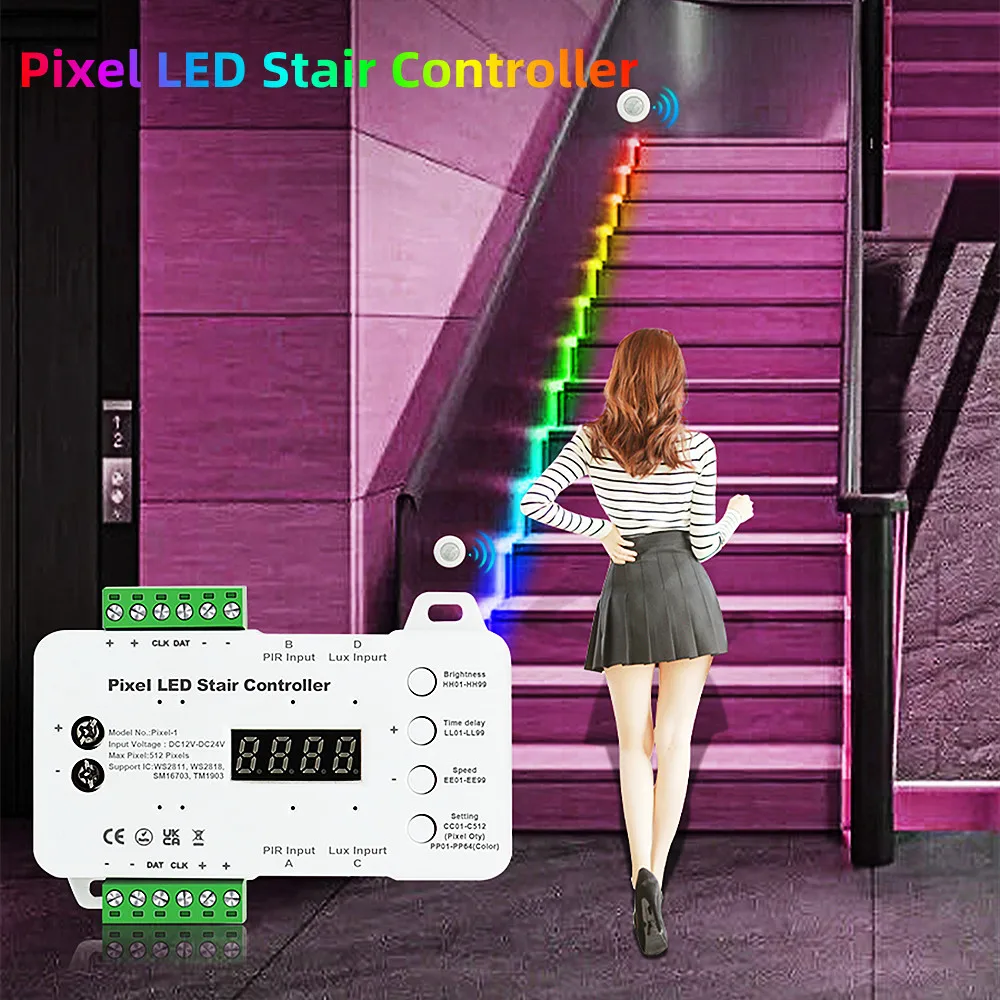

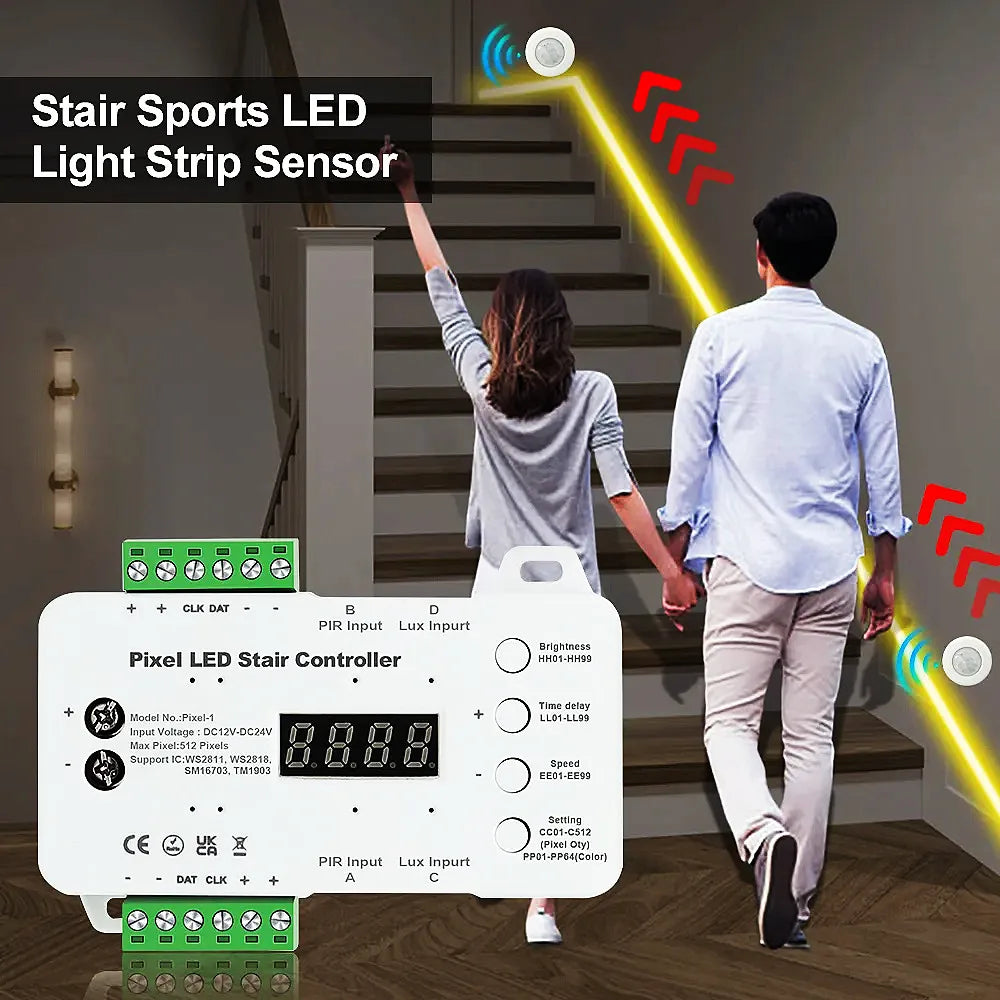

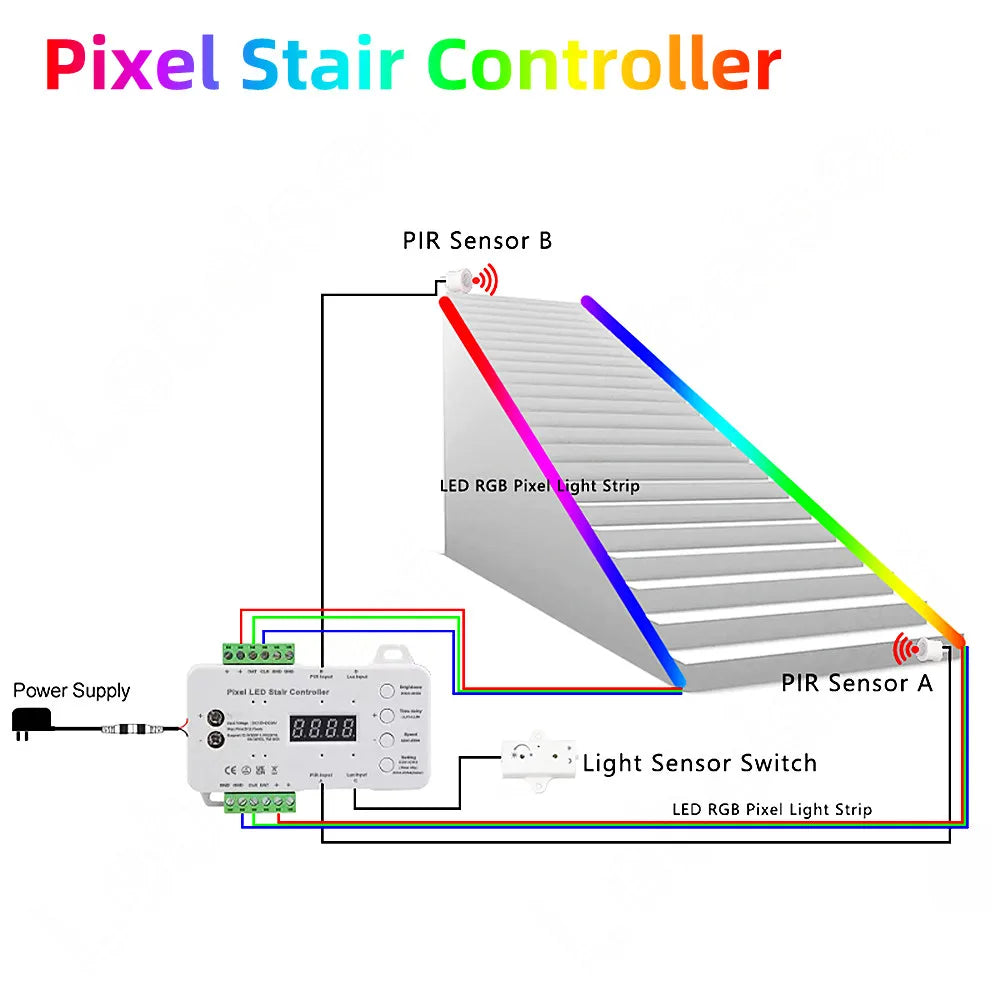

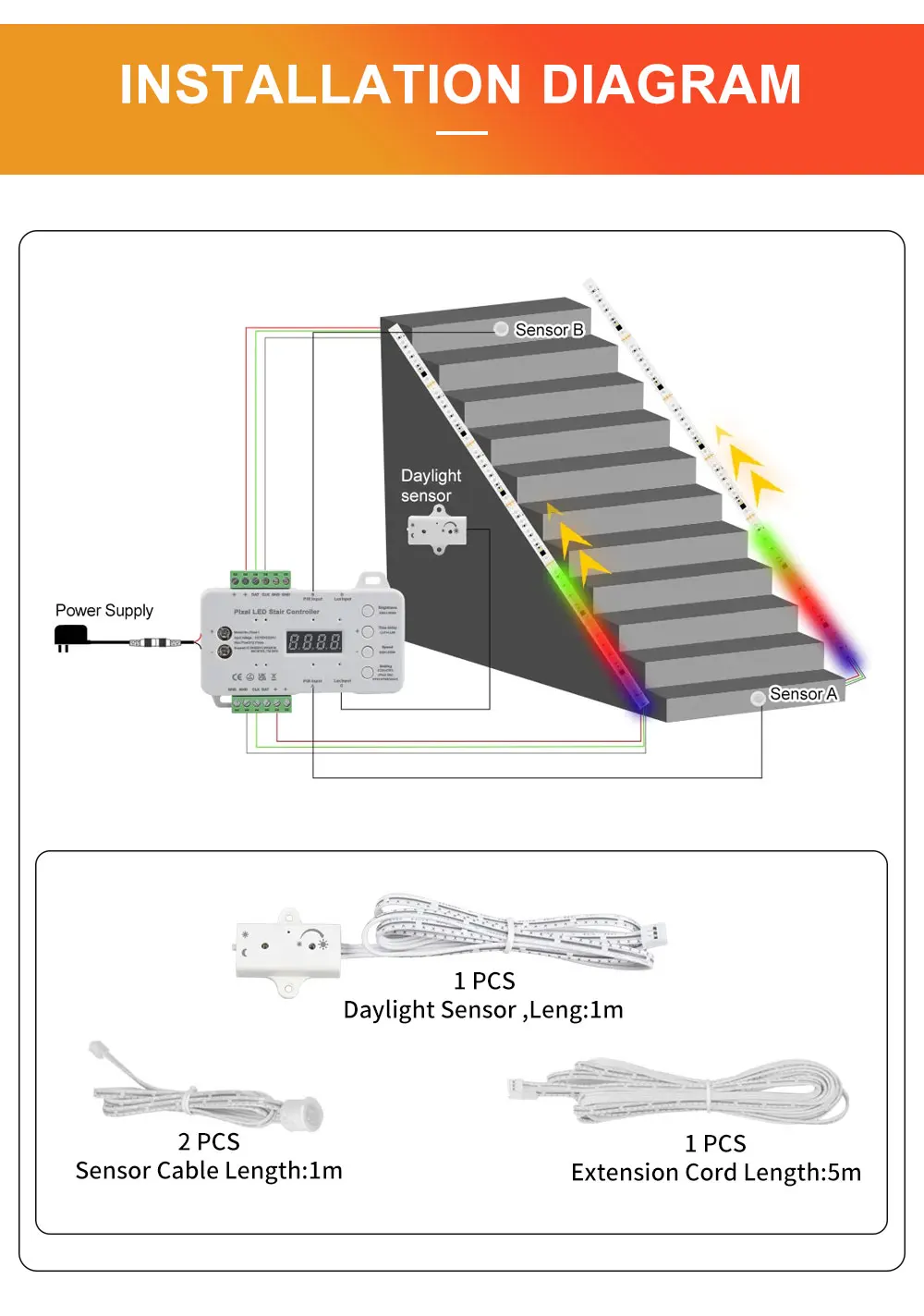

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
4- Don't make the +/- pole reversed, or the controller can't work.

How To Use

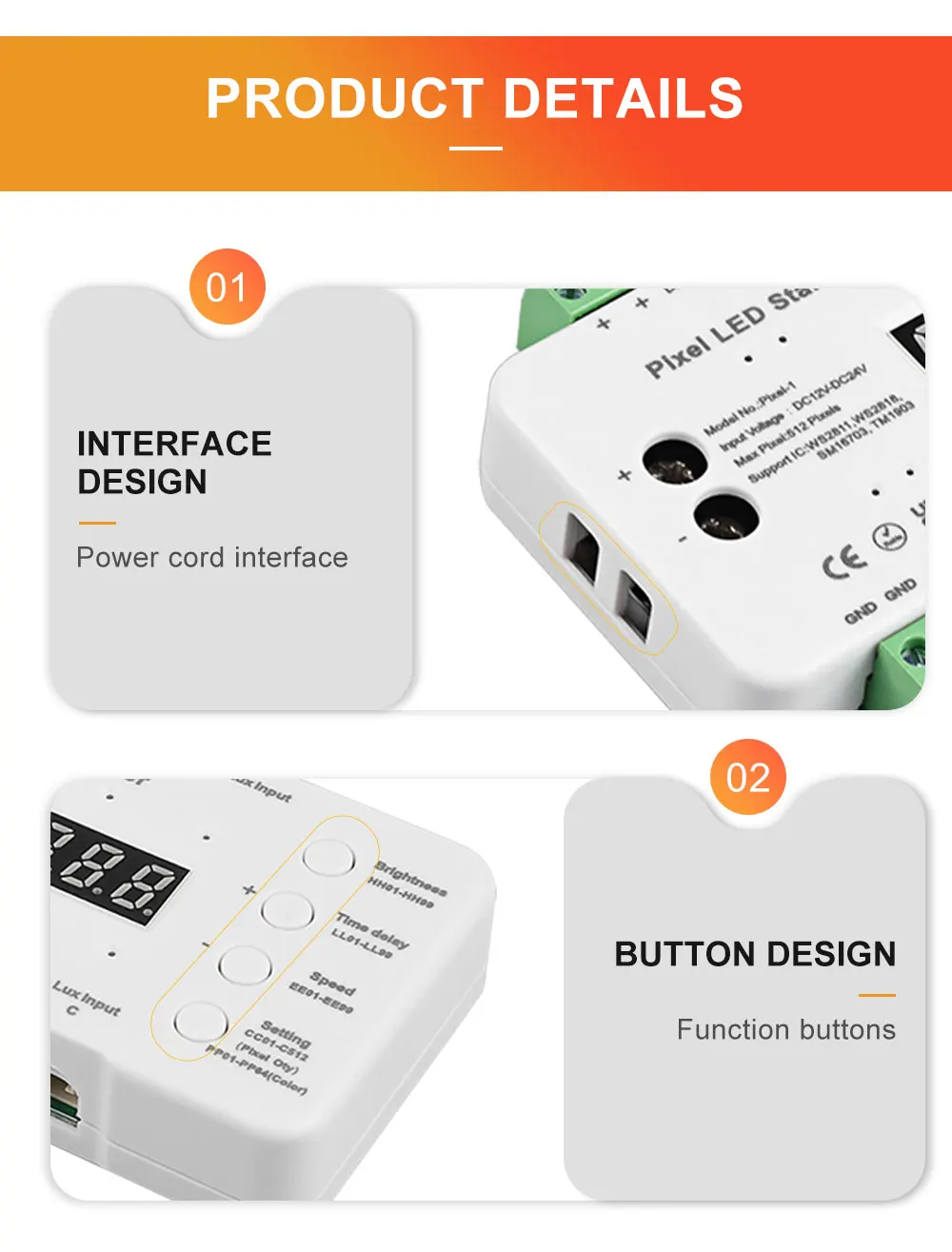

1. Setting
Long press "Setting" to set Brightness, Time Delay, Speed, RGB or Single Color,Pixeil Qty and Color.
Short press "Setting" to enter next setting.
After finished all setting, long press "Setting" to save all setting.

2.Mode
A. RGB and Single Color
1:If you connect Single Color Pixel LED Strip to controller, choose“CH-1”
2: If you connect RGBIC Pixel LED Strip to controller, choose "CH-3"

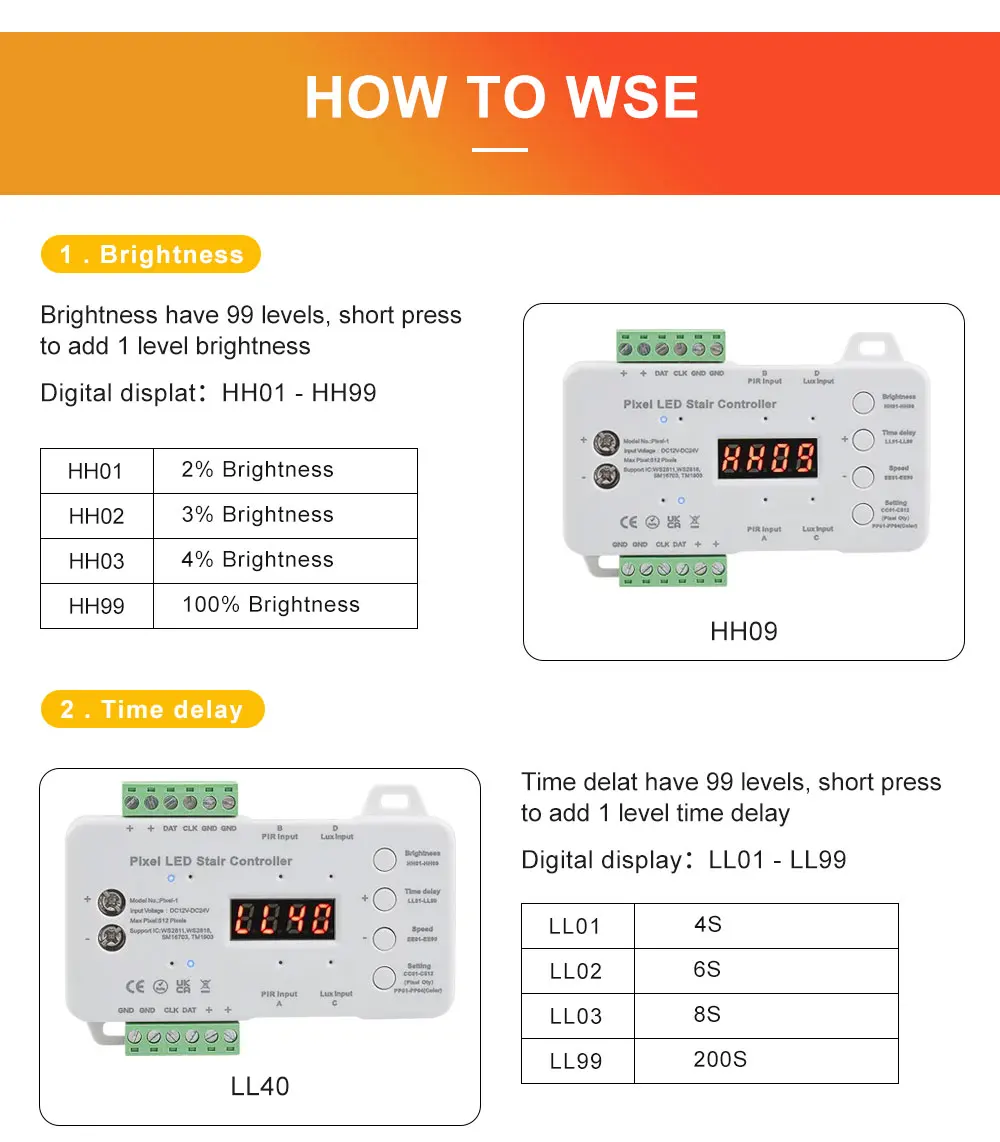

3. Brightness
Brightness have 99 levels, short press to add 1 level brightness
Digital display: HH01-HH99
HH01------------------2% brightness
HH02------------------3% brightness
HH03------------------4% brightness
HH99------------------100% brightness

4.Time delay
Time delay have 99 levels, short press to add 1 level time delay
Digital display: LL01-LL99
LL01------------------4S
LL02------------------6S
LLO3------------------8S
LL99------------------200S

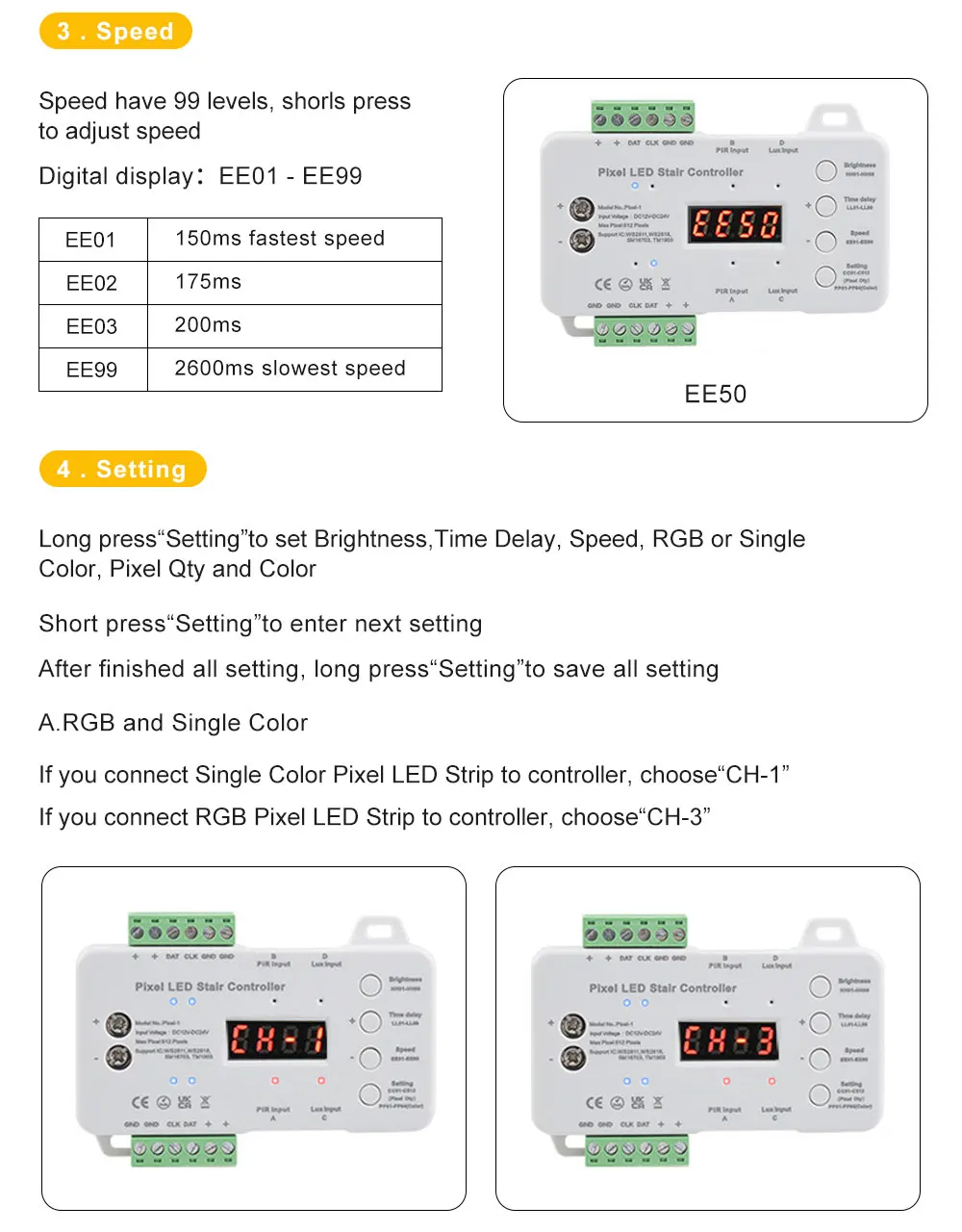

5. Speed
Speed have 99 levels, short press to adjust speed
Digital display: EE01-EE99
EE01------------------150ms fastest speed
EE02------------------175ms
EEO3------------------200ms
EE99------------------2600ms slowest speed

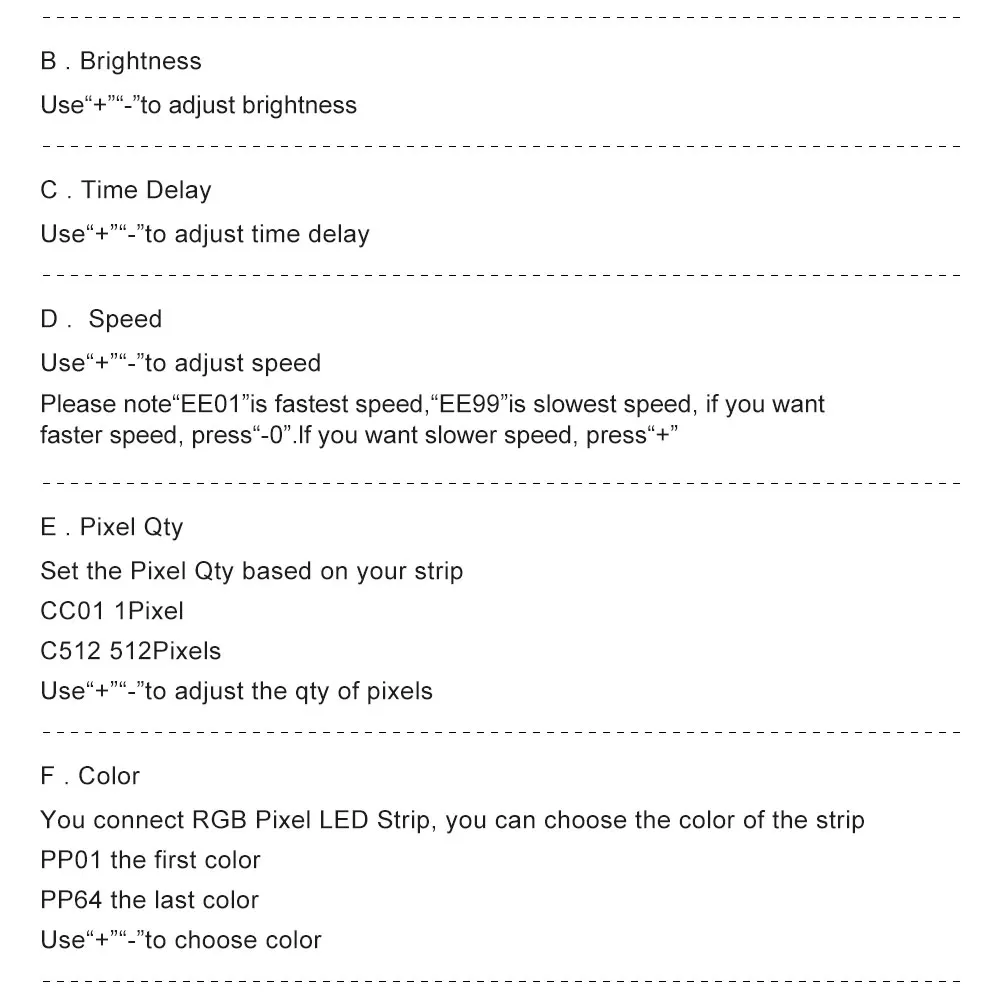

6. Set Pixel Qty (number of IC chips)
Set the Pixel Qty based on your strip
CC01----------------------------1Pixel (number of IC chips)
C512----------------------------512Pixels (number of IC chips)
Use "+" "-" to adjust the qty of pixels

7. Set the color Color
you connect RGB Pixel LED Strip, you can choose the color of the strip
PP01 the first color
PP64 the last color
Use "+" "_" to choose color

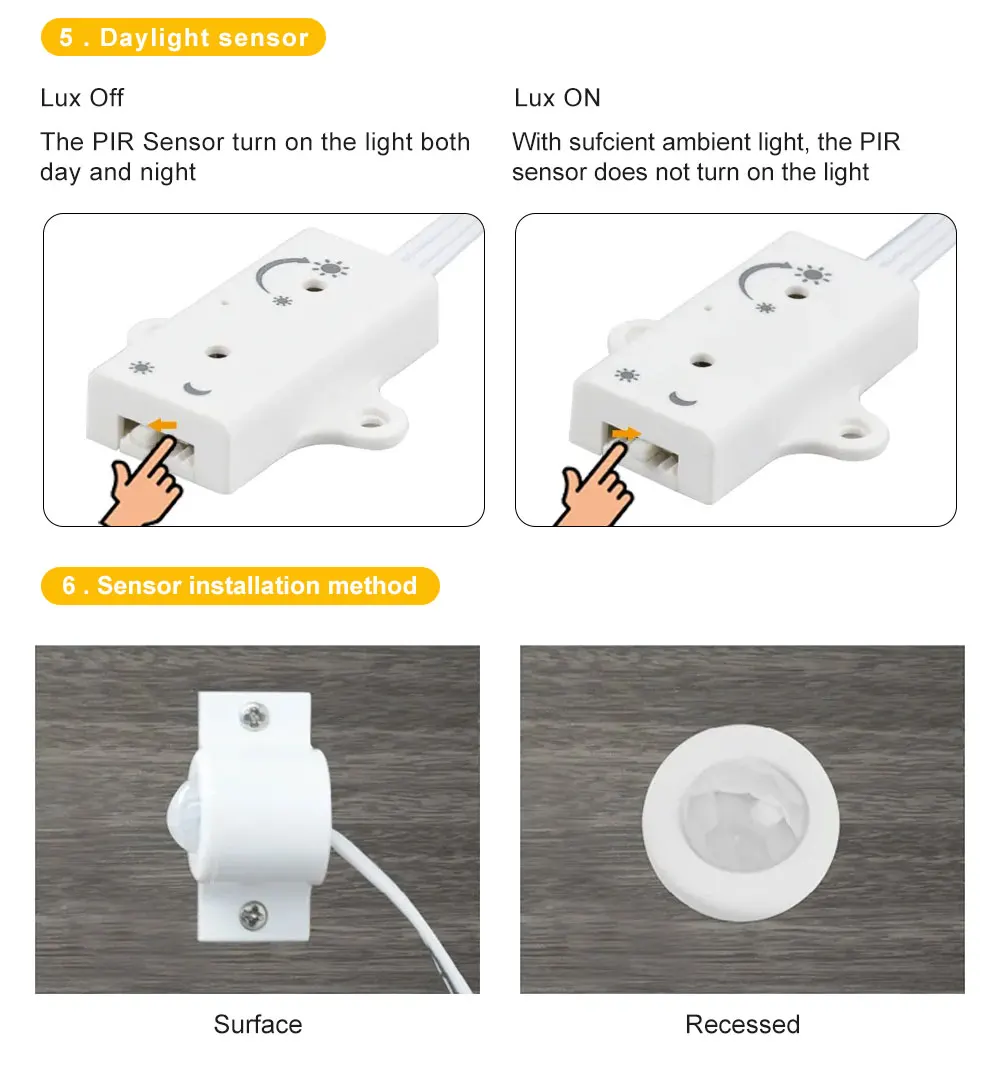

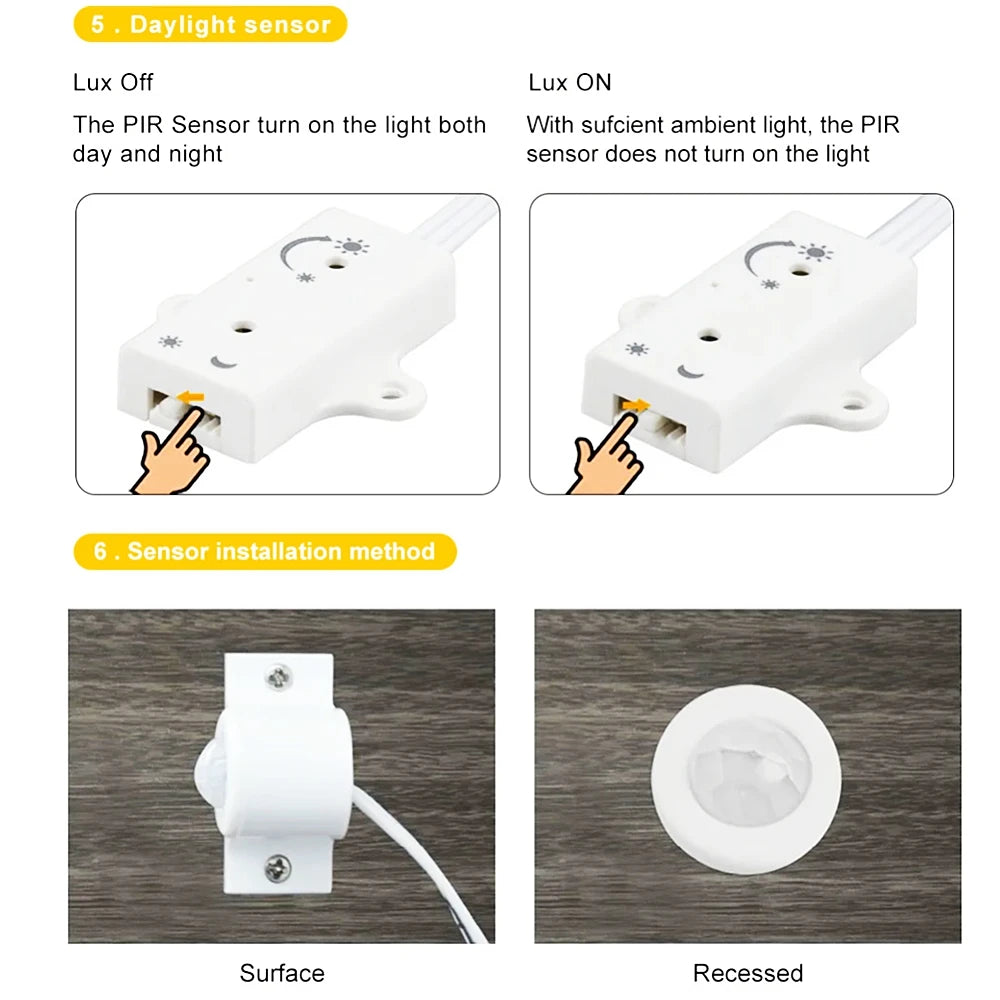

8. Daylight sensor
Lux Off：The PIR Sensor turn on the lightboth day and night
Lux ON：With sufcient ambient light, the PIR sensor does not turn on the light

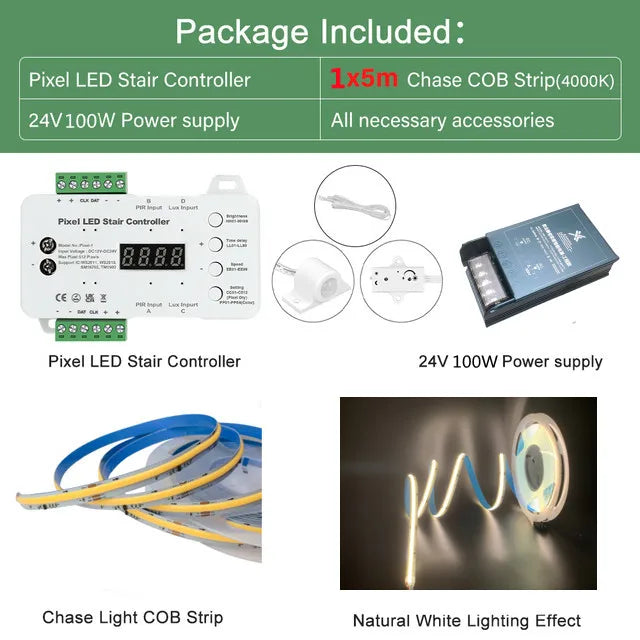

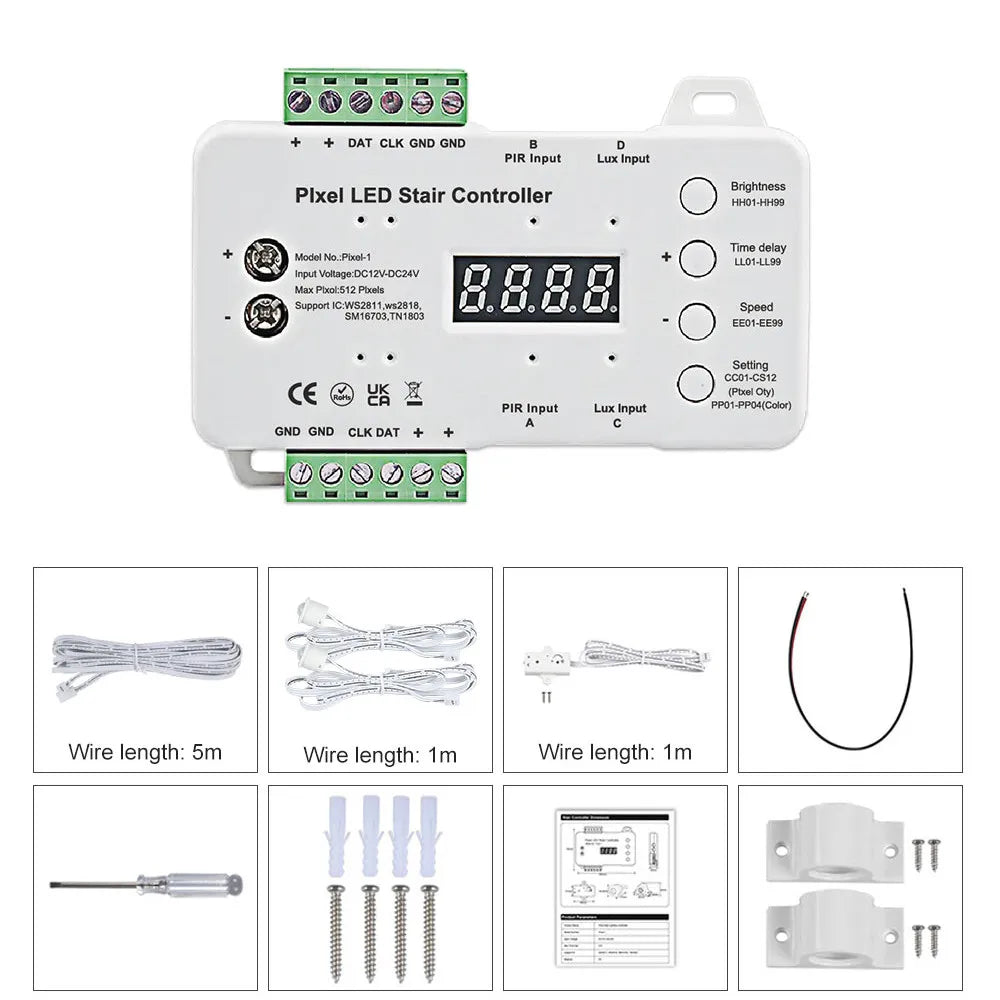

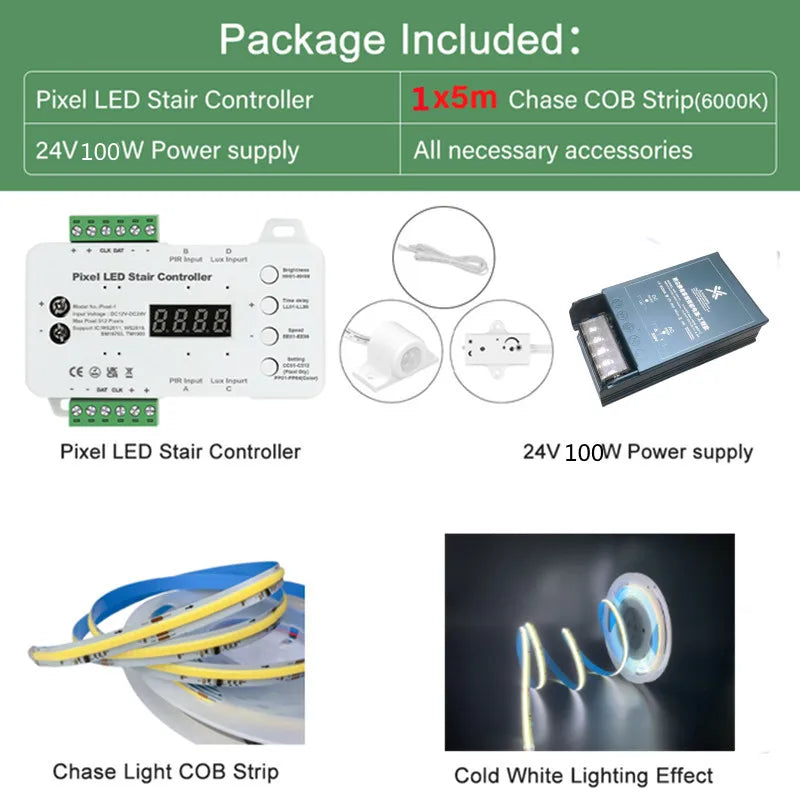

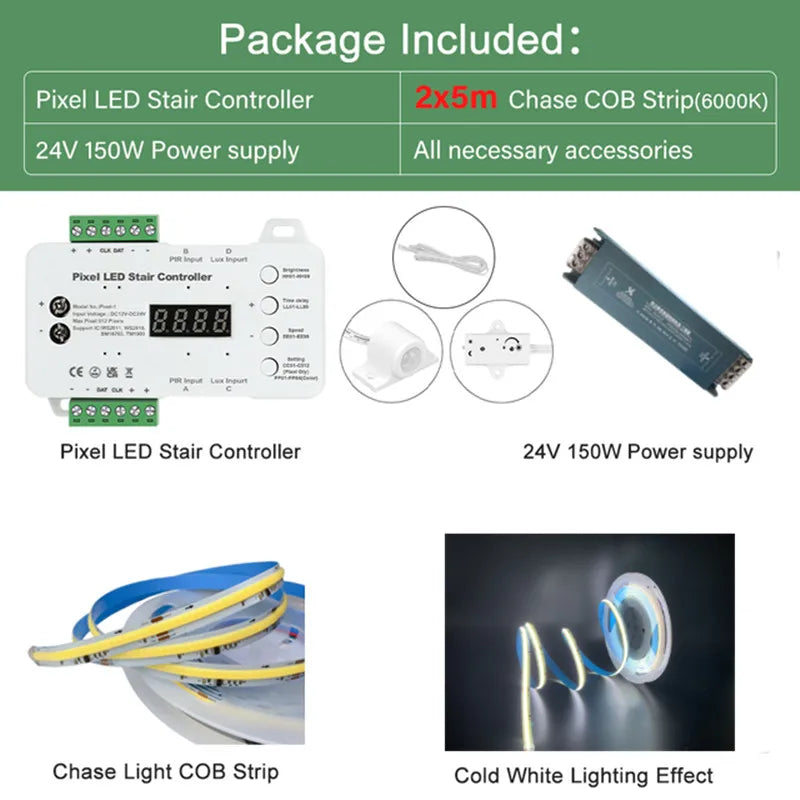

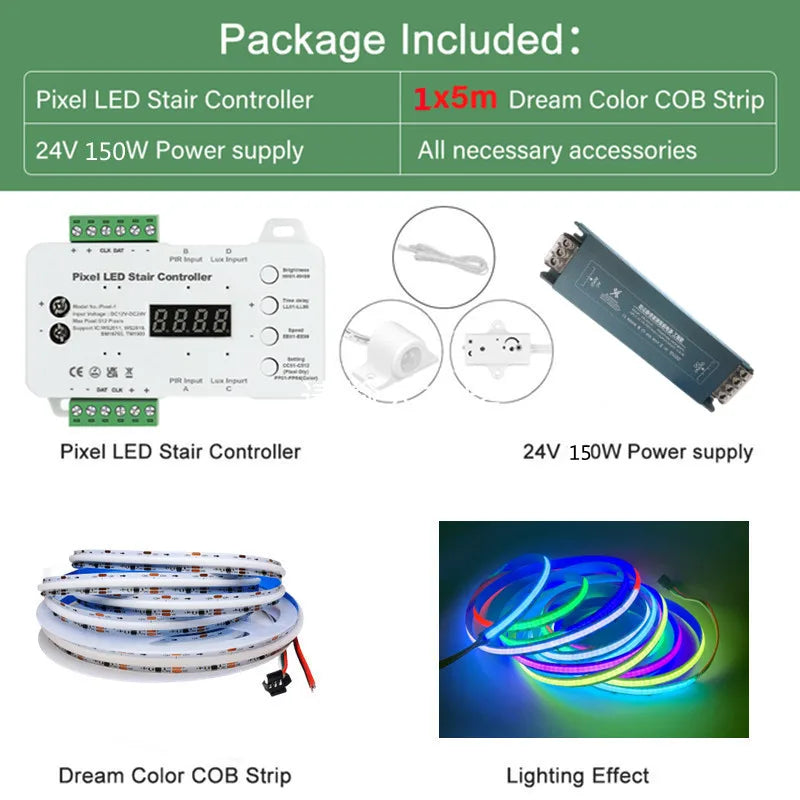

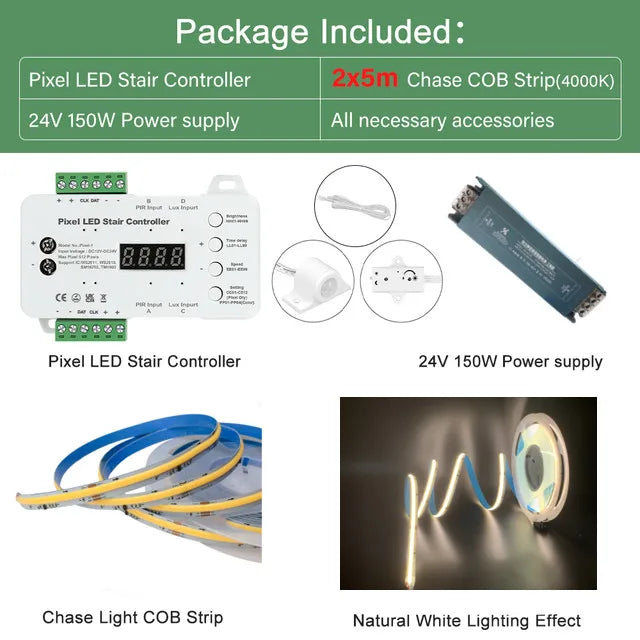

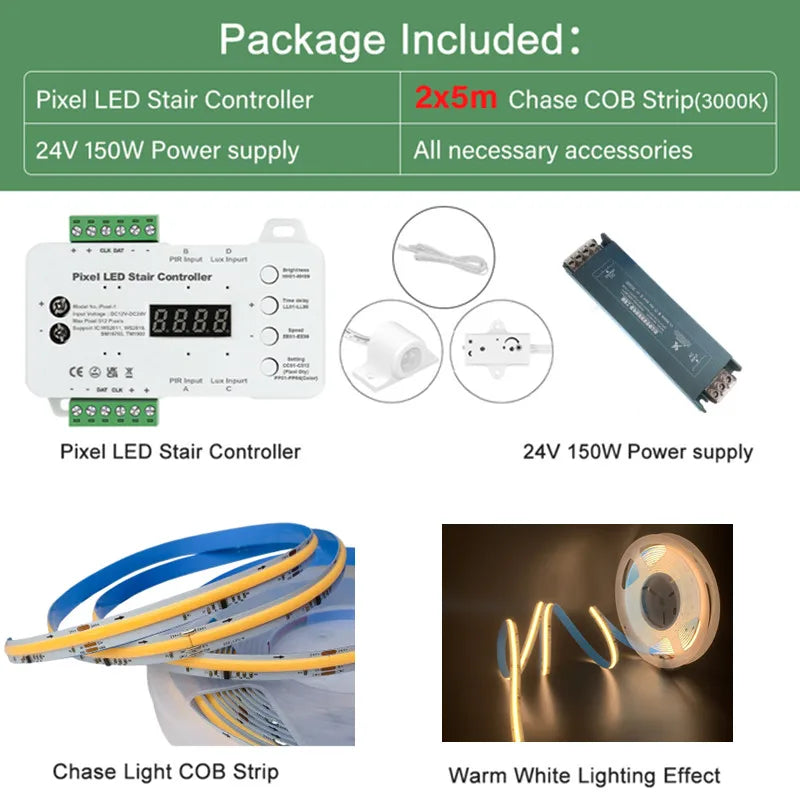

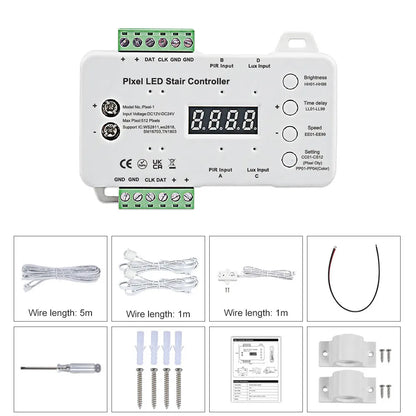

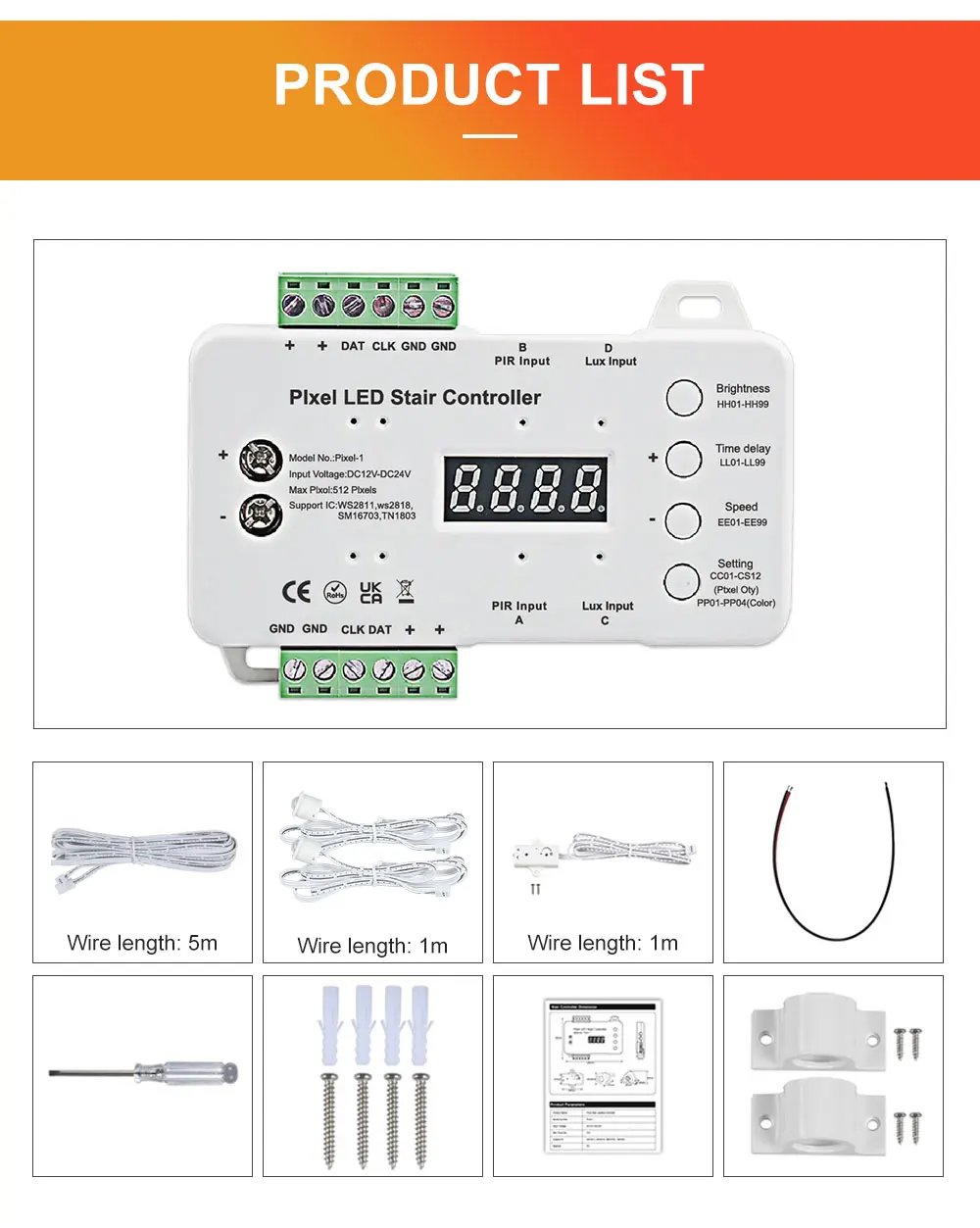

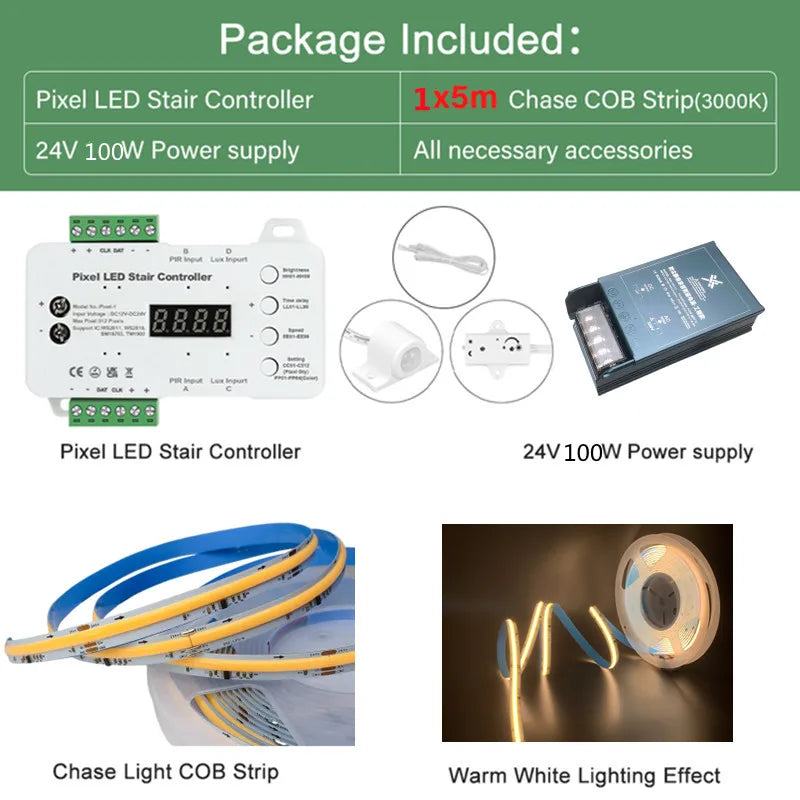

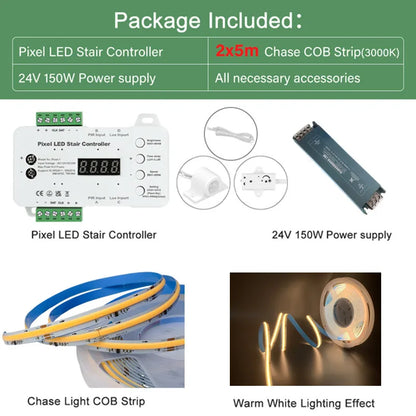

Package Included:

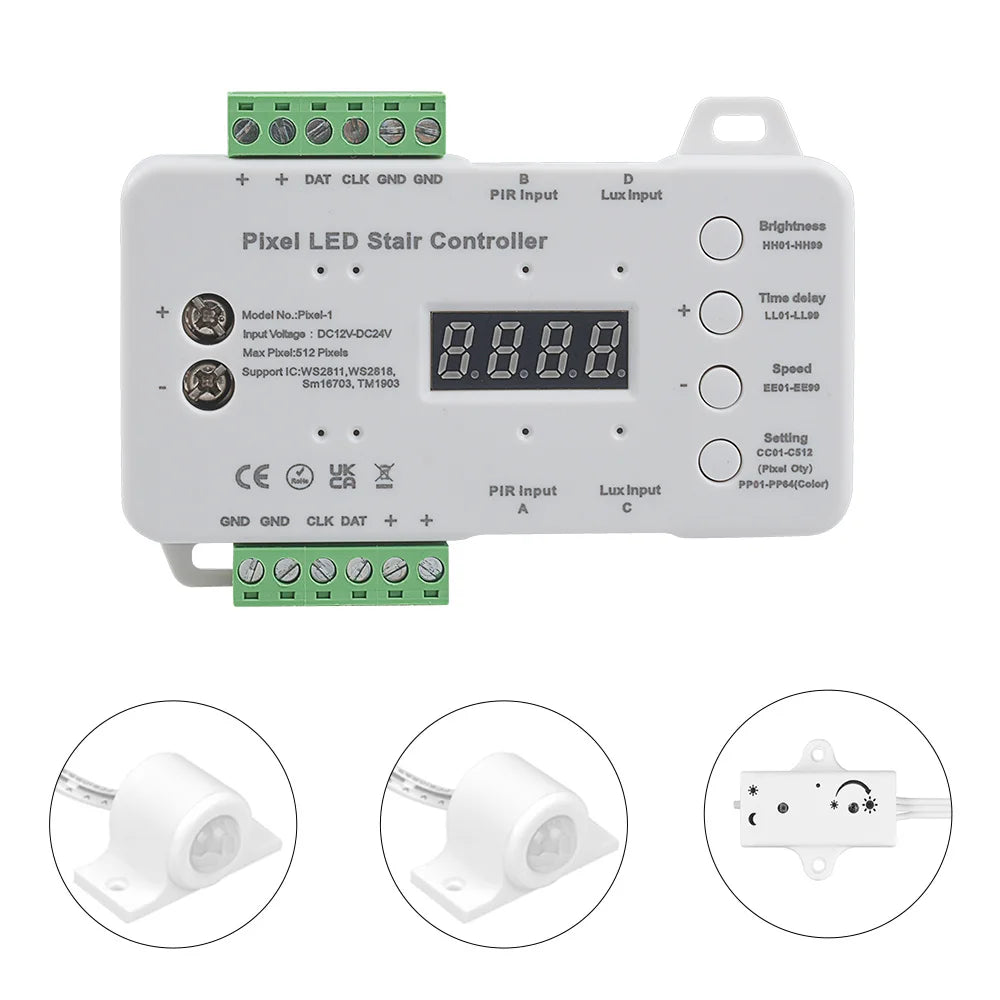

1x Pixel Controller
2x PIR sensor (1 meter)
1 batch of tools and accessories
Power supply and led strip need to choose!

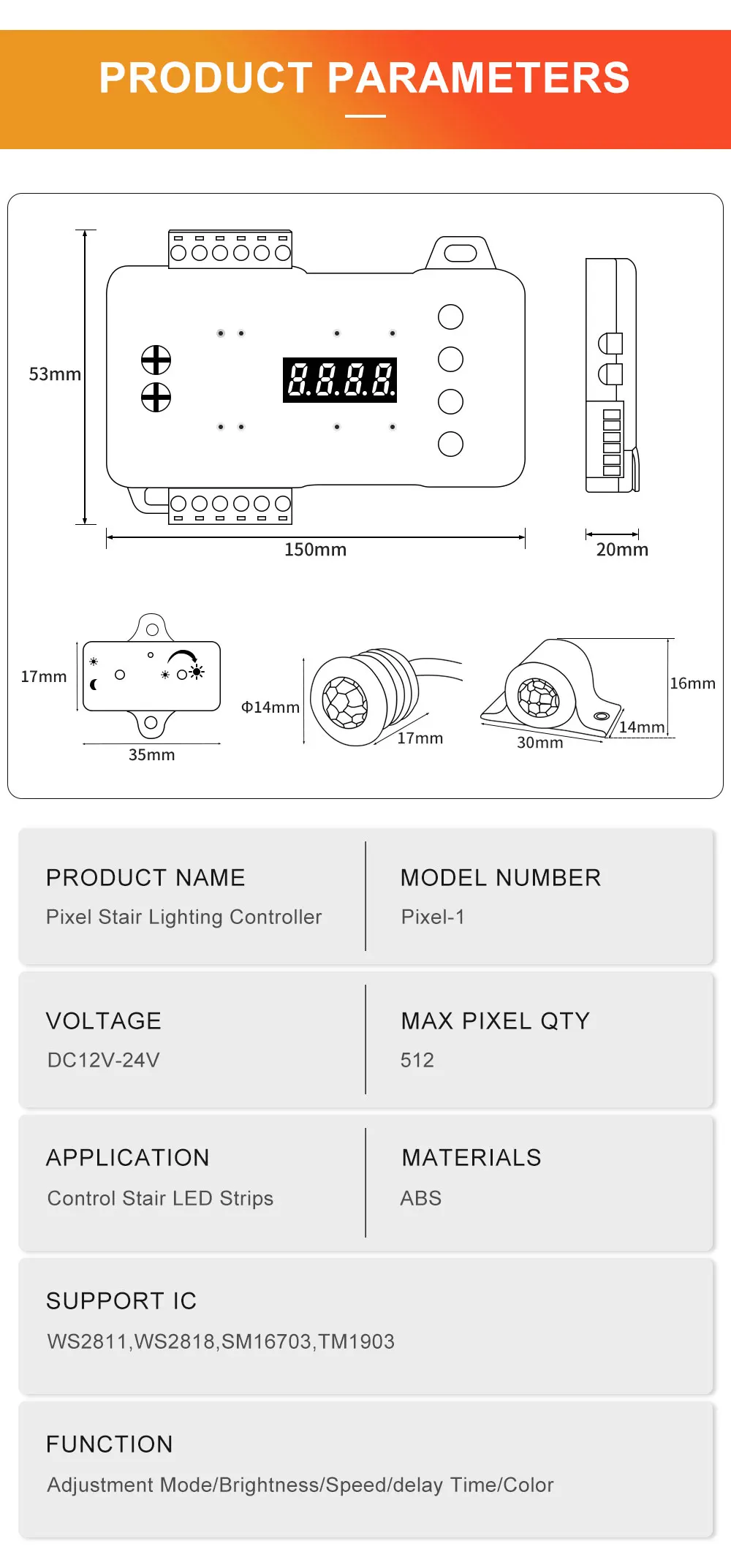

Product description

Smart Stair Sports IC Streamer LED Strip Light Sensor
Voltage: DC 12V-24V
Max pixel qty (number of IC chips): 512
Support IC type: WS2811, WS2818, SM16703, TM1903
Max current: 10A
Sensors: 2 PIR Sensoron both sides
Special function:  Delay Time/Speed / dimmable Lights and 12 Model to control
PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )
Features: can control RGBIC or running led strip light
